PMOLED Display 0.91 Inch 8 Pins 128x32 Dots Oled Lcd Display White I²C COG Graphic Monochrome

Quick Details

• ZPO1283201W08P091-A00 is a 0.91" diagonal PM-OLED display panel product , it self emiting, without touch screen.
• It features an operating temperature range of -40 ~ 80°C , a storage temperature range of -40 ~ 80°C .
• It's general features are summarized in the following: Wide Temperature, Bar Display .
• Based on its features,we recommend that this model be applied to Wearable, Instruments & Meters etc.Built-in SSD1306BZ driver IC.

PMOLED Display 0.91 Inch 8 Pins 128x32 Dots White COG OLED General Features:

Model ZPO1283201W08P091-A00
Diagonal Size 0.91 inch
Type PM-OLED , OLED
Pixel Format 128×32 145PPI
Configuration Rectangle
Active Area 22.384(H)×5.584(V) mm
Outline Dim. 30(H)×11.5(V) ×1.45(D) mm
Bezel Area 24.384(H)×7.584(V) mm
Treatment -
View Direction Symmetry
Response Time 10/10 μs (Tr/Tf)
Viewing Angle 80/80/80/80
Operating Mode Passive Matrix
Duty 1/32
Contrast Ratio 2000:1
Support Color Mono(White)
Light Source self
Luminance 150 cd/m2
Operating Life Time 20,000 Hrs
Weight -
Designed For Wearable Instruments & Meters
Frame Rate -
Touch Panel Without
D-IC Detail COG Built-in SSD1306BZ
Interface Type I²C , 8 pins FPC
Power Supply 3.0V (Typ.)
Environment Operating Temperature: -40 ~ 80 °C ; Storage Temperature: -40 ~ 80 °C

PMOLED Display 0.91 Inch 8 Pins 128x32 Dots White COG OLED Applications

Wearable, Digital products , POS machine , instrument & meter , automobile electronics , communication machine , medical machine , security machine , household electrical appliances and others .

PMOLED Display 0.91 Inch 8 Pins 128x32 Dots White COG OLED Packing term

Protect product with polyfoam and multi layer paper board .
Special protect carton for exporting product .
Per customer requirement .

PMOLED Display 0.91 Inch 8 Pins 128x32 Dots White COG OLED Delivery term

For samples ,we will finish production and ship within 7 working days . We usually arrange DHL , UPS , FedEx express to ship samples .

For bulk orders , usually 30 working days and depends on your design . For bulk orders, we support shipping by air or by sea as per customers' requirements .

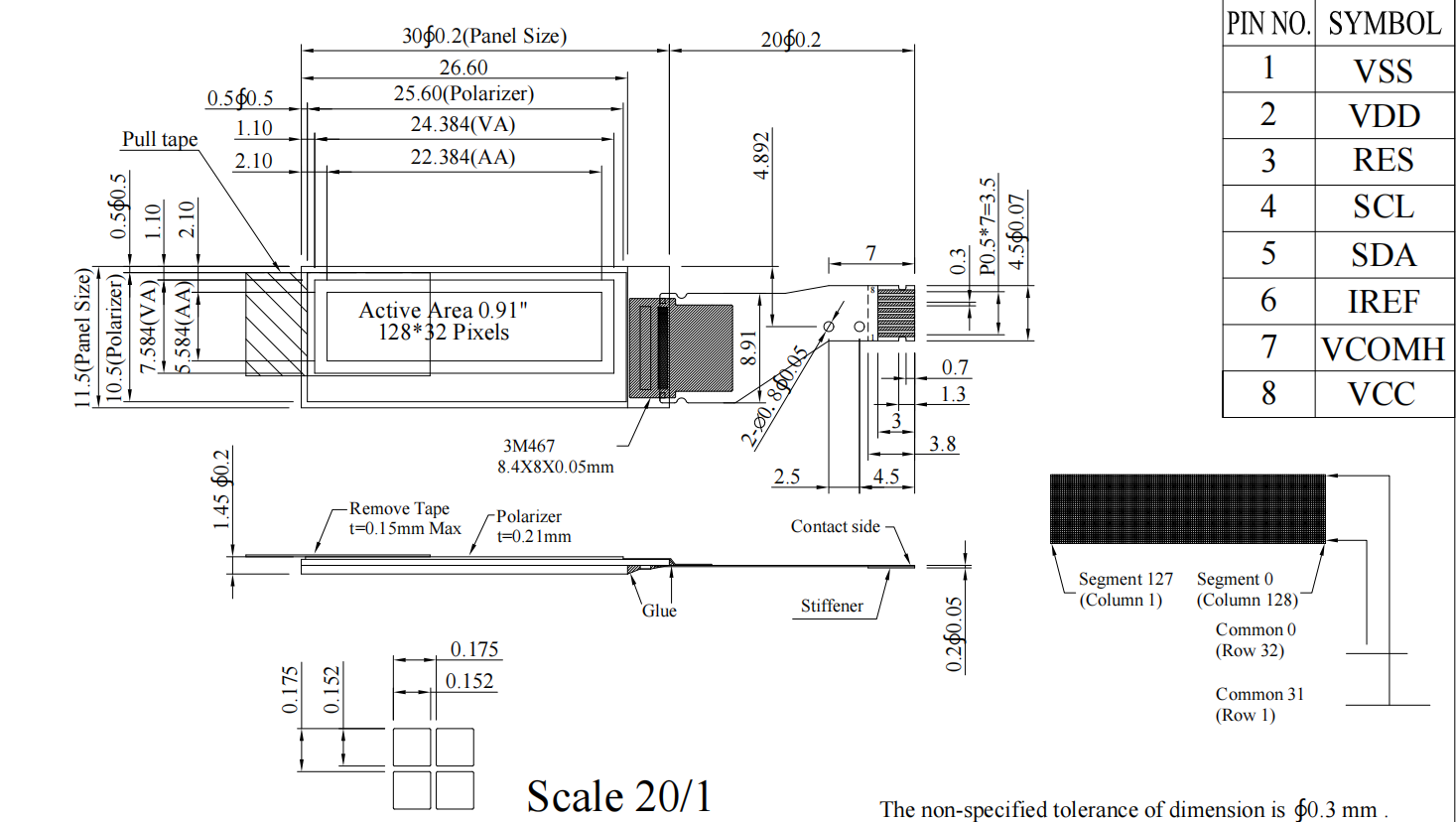

PMOLED Display 0.91 Inch 8 Pins 128x32 Dots White COG OLED Mechanical Drawing
