    TM070RDHG34 TIANMA 7.0Inch Industrial Tft Lcd Module 800x480 Dots 50 Pins RGB Interface

    Ask Lasest Price
    Brand Name : TIANMA
    Model Number : TM070RDHG34
    Certification : ROHS , REACH , ISO9001 , ISO14001
    Price : Negotiated
    Payment Terms : T/T, Paypal
    Supply Ability : More than 100000 pieces per month
    Delivery Time : Within 7 working days
    • Product Details
    • Company Profile

    TM070RDHG34 TIANMA 7.0Inch Industrial Tft Lcd Module 800x480 Dots 50 Pins RGB Interface

    Industrial TFT Display, TM070RDHG34 TIANMA 7.0Inch 800*480 Dots TFT LCD Display Module 50 Pins RGB Interface
    TM070RDHG34 TIANMA 7.0Inch 800*480 Dots Industrial TFT Display Key Specifications Special Features:
    Diagonal Size:7.0 InchBrand:TIANMA
    Resolution:800(RGB)×480 WVGAView Direction:6 O'clock
    Outline Dimension:164.9(H)×100(V) ×6(D) MmActive Area Size:154.08(H)×85.92(V) Mm
    Luminance:1000 Cd/m² (Typ.)Contrast Ratio:800:1 (Typ.)
    Operating Temp.:-30 ~ 85 °CStorage Temp.:-40 ~ 90 °C
    The TM070RDHG34 is a 7.0 inch diagonal a-Si TFT-LCD display panel product from Tianma Microelectronics Co., Ltd. (hereafter called TIANMA), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -40 ~ 90°C , and the maximal vibration level of 6.8G (66.64 m/s²). It's general features are summarized in the following: Wide Temperature, 6.8G Vibration, Ultra High Brightness, WLED Backlight, Life ≥ 50K hours, U/D,L/R Reverse, Matte . Based on its features, we recommend that this model be applied to Industrial, Outdoor High Brightness, Automotive Display etc.Built-in HX8264D + HX8664B driver IC.
    Brand TIANMA
    Model TM070RDHG34
    Diagonal Size 7.0 inch
    Type a-Si TFT-LCD , LCM
    Pixel Format 800(RGB)×480 [WVGA] 134PPI
    Configuration RGB Vertical Stripe
    Active Area 154.08(H)×85.92(V) mm
    Outline Dim. 164.9(H)×100(V) ×6(D) mm
    Bezel Area 157.08(H)×89.39(V) mm
    Treatment Antiglare
    Luminance 1000 cd/m² (Typ.)
    Contrast Ratio 800:1 (Typ.) (TM)
    View Direction 6 o'clock
    Response Time 25 (Typ.)(Tr+Td)
    Viewing Angle 70/70/60/70 (Typ.)(CR≥10) Left / Right / Up / Down
    Operating Mode TN, Normally White, Transmissive
    Support Color 16.7M 50% NTSC
    Light Source WLED [3S8P] , 50K hours , W/O Driver
    Weight TBD
    Designed For Industrial , Outdoor High Brightness , Automotive Display
    Frame Rate 60Hz
    Touch Panel Without
    Interface Type Parallel RGB (1 ch, 8-bit) 50 pins FPC
    Power Supply 3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)
    Environment Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C ; Vibration Level: 6.8G (66.64 m/s²)

    TM070RDHG34 TIANMA 7.0Inch 800*480 Dots Industrial TFT Display Applications


    Digital products, POS machine, instrument & meter, automobile electronics, communication machine, medical machine, security machine, household electrical appliances and others


    TM070RDHG34 TIANMA 7.0Inch 800*480 Dots Industrial TFT Display Packing term


    Protect product with polyfoam and multi layer paper board.

    Special protect carton for exporting product,

    Per customer requirement.


    TM070RDHG34 TIANMA 7.0Inch 800*480 Dots Industrial TFT Display Delivery term


    For samples, we will finish production and ship within 7~15 working days. We usually arrange DHL, UPS, FedEx express to ship samples.

    For bulk orders, usually 25~35 working days and depends on your design. For bulk orders, we support shipping by air or by sea as per customers' requirements.


    Custom design OEM/ODM solutions


    We support both standard and customized products and can put your logo on the products. Our experienced R&D team will support technical questions. ODM/OEM products are warmly welcome.


    Our Advantages


    Prompt reply within 12 hours.

    Products with top quality.

    Very competitive prices.

    Small MOQ accepted.

    More than 10 years’ experience in LCD R&D and manufacturing.

    Strong R&D term supports perfect customized projects.

    Fabulous after-sale service.

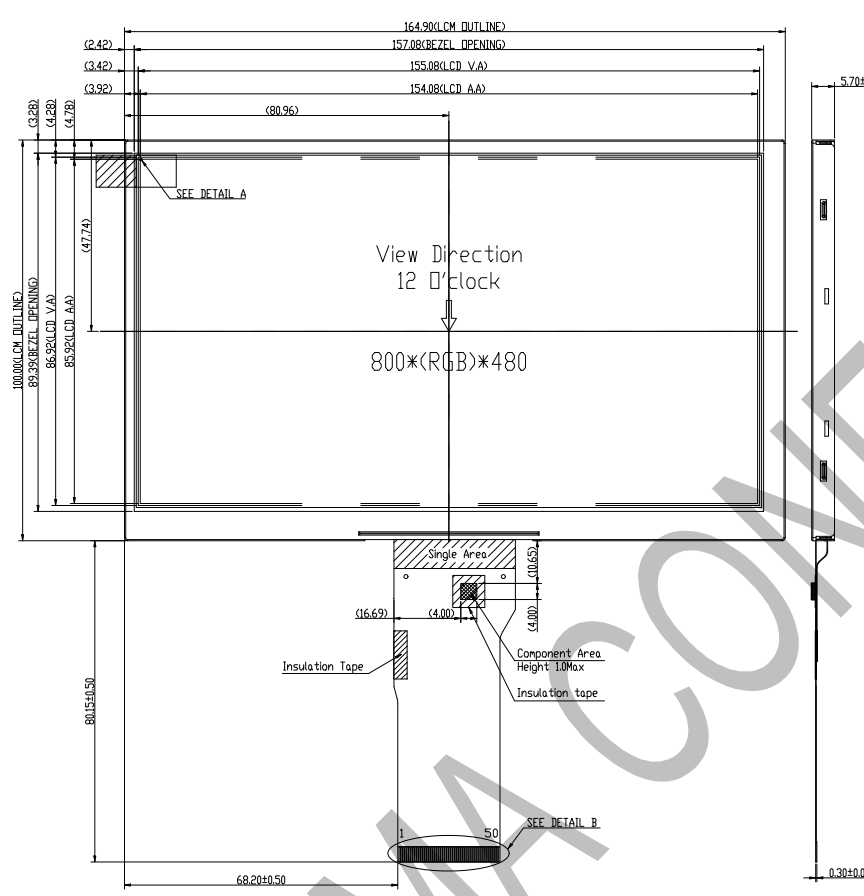

    TM070RDHG34 TIANMA 7.0Inch 800*480 Dots Industrial TFT Display Mechanical Drawing
