    TN Lcd Display Module 230 Cd/M² Industrial G104SN03 V5 AUO 10.4 Inch 800x600 Dots

    Ask Lasest Price
    Brand Name : AUO
    Model Number : G104SN03 V5
    Certification : ROHS , REACH , ISO9001 , ISO14001
    Price : Negotiated
    Payment Terms : T/T, Paypal
    Supply Ability : More than 100000 pieces per month
    Delivery Time : Within 7 working days
    • Product Details
    • Company Profile

    TN Lcd Display Module 230 Cd/M² Industrial G104SN03 V5 AUO 10.4 Inch 800x600 Dots

    Industrial TFT Display, G104SN03 V5 AUO 10.4 Inch 800x600 Dots TN TFT LCD Module 230 cd/m2
    G104SN03 V5 AUO 10.4 Inch 800x600 Dots Industrial TFT Display Key Specifications Special Features:
    Diagonal Size:10.4 InchManufacturer:AUO
    Resolution:800 X 600 DotsView Direction:6 O'clock
    Outline Dimension:236 × 176.9 × 6 (H×V×D)(mm)Active Area Size:211.2 × 158.4 (H×V)(mm)
    Viewing Angle:80/80/60/70 (Typ.)Signal Type:LVDS (1 Ch, 6/8-bit) , Connector 20 Pins
    G104SN03 V5 (Alias: G104SN03 V.5) is a 10.4" diagonal a-Si TFT-LCD display panel product from AU Optronics Corp. (hereafter called AUO), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -20 ~ 70°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized in the following: Lamp Repaceable, WLED Backlight, With LED Driver, 180° Reverse, 6/8 bit, Matte . Based on its features,we recommend that this model be applied to Industrial etc.
    Manufacturer AUO
    Model Name G104SN03 V5
    Screen Size 10.4 inch
    Screen Type LCM, a-Si TFT-LCD
    Pixel Number 800(RGB)×600 (SVGA) 96PPI
    Arrangement RGB Vertical Stripe
    Active Area 211.2 × 158.4 (H×V)(mm)
    Outline 236 × 176.9 × 6 (H×V×D)(mm)
    Bezel Area 214.8 × 162.0 (H×V)(mm)
    Treatment Antiglare, Hard coating (3H)
    Luminance 230 cd/m² (Typ.)
    Contrast Ratio 500 : 1 (Typ.) (TM)
    Viewing Angle 80/80/60/70 (Typ.)(CR=10) Left / Right / Up / Down
    Response 10/5 (Typ.)(Tr/Td) ms
    Good View at 6 o'clock
    Work Mode TN, Normally White, Transmissive
    Color Depth 262K/16.2M 50% NTSC
    Backlight 3 strings WLED , 25K hours , With LED Driver
    Mass 280g (Typ.)
    Used for Industrial
    Refresh Rate 60Hz
    Touchscreen Without
    Signal Type LVDS (1 ch, 6/8-bit) , Connector 20 pins
    Voltage Supply 3.3V (Typ.)
    Max. Ratings Storage Temp.: -20 ~ 70 °C Operating Temp.: -20 ~ 70 °C

    G104SN03 V5 AUO 10.4 Inch 800x600 Dots Industrial TFT Display Applications


    Digital products, POS machine, instrument & meter, automobile electronics, communication machine, medical machine, security machine, household electrical appliances and others


    G104SN03 V5 AUO 10.4 Inch 800x600 Dots Industrial TFT Display Packing term


    Protect product with polyfoam and multi layer paper board.

    Special protect carton for exporting product,

    Per customer requirement.


    G104SN03 V5 AUO 10.4 Inch 800x600 Dots Industrial TFT Display Delivery term


    For samples, we will finish production and ship within 7~15 working days. We usually arrange DHL, UPS, FedEx express to ship samples.

    For bulk orders, usually 25~35 working days and depends on your design. For bulk orders, we support shipping by air or by sea as per customers' requirements.


    Custom design OEM/ODM solutions


    We support both standard and customized products and can put your logo on the products. Our experienced R&D team will support technical questions. ODM/OEM products are warmly welcome.


    Our Advantages


    Prompt reply within 12 hours.

    Products with top quality.

    Very competitive prices.

    Small MOQ accepted.

    More than 10 years’ experience in LCD R&D and manufacturing.

    Strong R&D term supports perfect customized projects.

    Fabulous after-sale service.

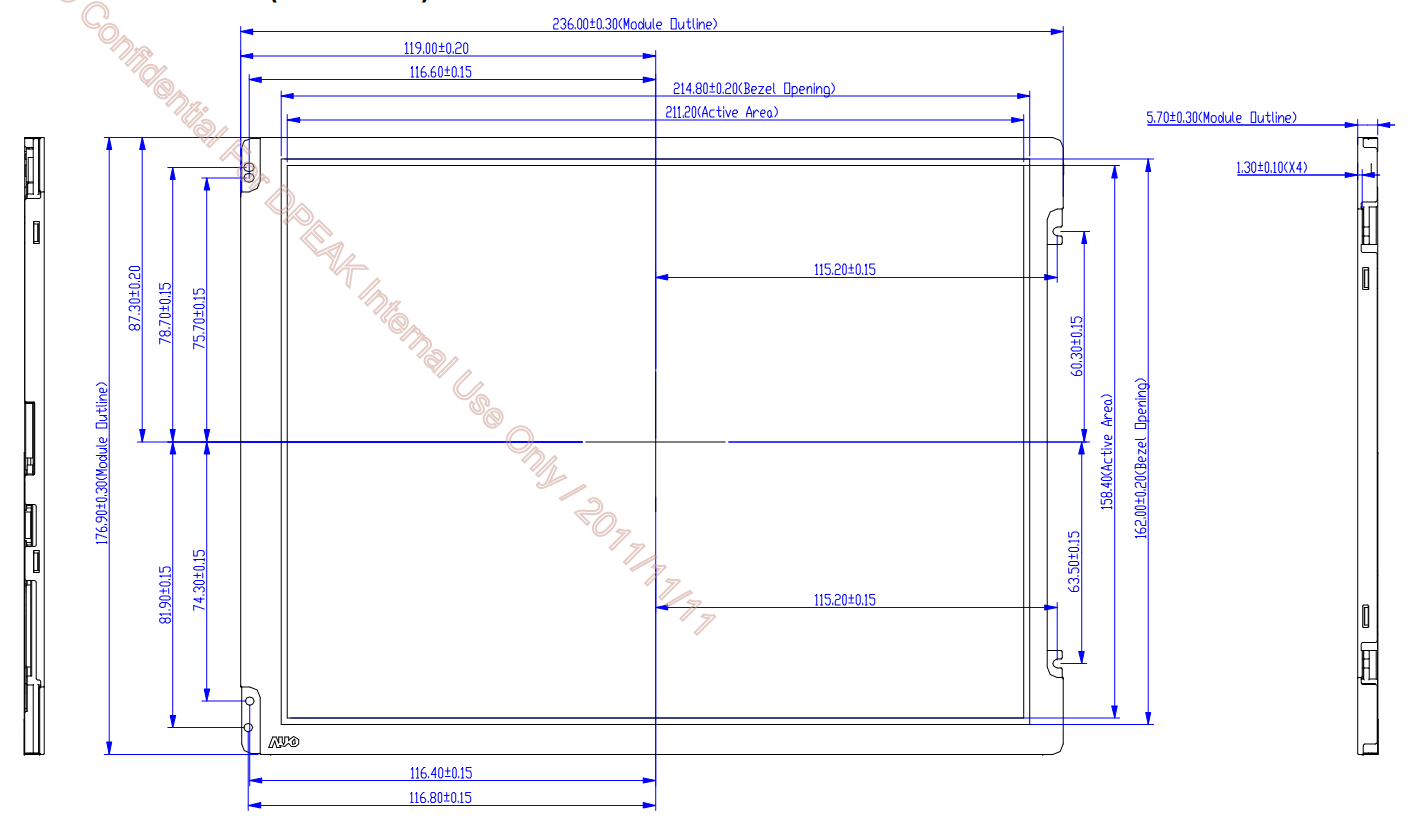

    G104SN03 V5 AUO 10.4 Inch 800x600 Dots Industrial TFT Display Mechanical Drawing
