Character LCD Display Module, 8 Characters X 2 Line STN Yellow-Green Transmissive , 16 Pins

8 Characters X 2 Lines Character LCD Display Module Features:

Display format: 8 characters x 2 lines

Display mode: STN/Yellow-Green/Transflective/Positive

Structure: STN LCD panel + Bezel+ Zebra +PCB

Controller: S6B0069 or Equivalent.

Module size: 58.0(W) x 32.0(H) x 14.0 max (T) mm

Viewing area size: 38.0(W) x 16.0(H) mm

Active area size: 44.20(W) x 11.50(H) mm

Character size: 2.96(W) x 5.56(H) mm

Dot size: 0.56(W) x 0.66(H) mm

Dot pitch: 0.60(W) x 0.70(H) mm

LCD Driving Voltage: 5.0V

Operating temperatures: -20 to 70°C

Storage temperatures: -30 to 80°C

Applications

Digital products, POS machine, instrument & meter, automobile electronics, communication machine, medical machine, security machine, household electrical appliances and others

8 Characters X 2 Lines Character LCD Display Module Packing term

Protect product with polyfoam and multi layer paper board.

Special protect carton for exporting product,

Per customer requirement.

Delivery term

For samples, we will finish production and ship within 7~15 working days. We usually arrange DHL, UPS, FedEx express to ship samples.

For bulk orders, usually 25~35 working days and depends on your design. For bulk orders, we support shipping by air or by sea as per customers' requirements.

Custom design OEM/ODM solutions

We support both standard and customized products and can put your logo on the products. Our experienced R&D team will support technical questions. ODM/OEM products are warmly welcome.

Our Advantages

Prompt reply within 12 hours.

Products with top quality.

Very competitive prices.

Small MOQ accepted.

More than 10 years’ experience in LCD R&D and manufacturing.

Strong R&D term supports perfect customized projects.

Fabulous after-sale service.

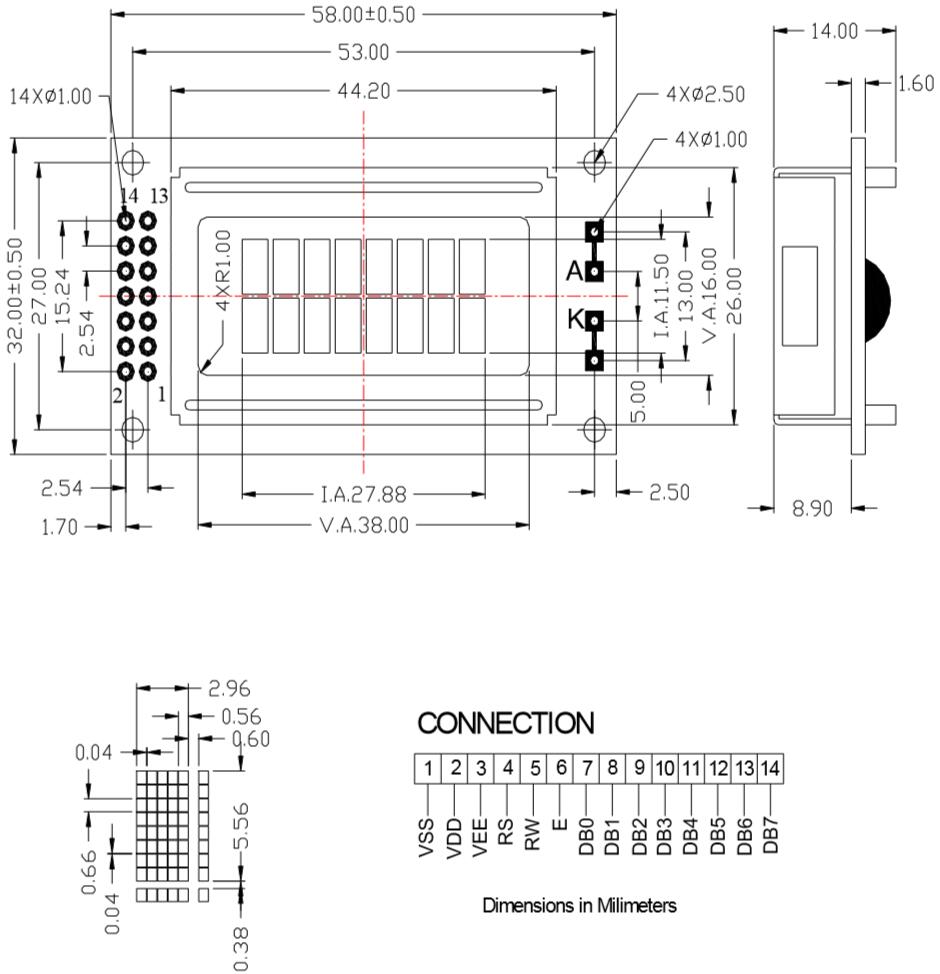

8 Characters X 2 Lines Character LCD Display Module Mechanical Drawing
