Graphic LCD Display Module, 5.7 Inch Monochrome 320 X 240 Dots STN Blue Negative COB LCM

• The ZPG32024032T-bTC2L-VD is a 320x240 dots dot-matrix LCD module.
• It has a STN panel composed of 320 segments and 240 commons.
• The LCM can be easily accessed by microcontroller via 8080 series interface.

Features:

Display format: 320 x 240 dots

Display mode: STN Blue Transmissive Negative

Structure: STN LCD panel + Bezel+ Zebra +PCB

Controller IC: RA8806L2N-S

Driving method: 1/240 duty,1/13 bias,Vop=21.0V ,Vdd=3.3 V

View direction:12 o’clock

Backlight type: White,5.0V, 160mA

Module size: 160.00(W) x 109.00(H) x 11.5 max (T) mm

Viewing area size: 122.00(W) x 92.00(H) mm

Active area size: 115.17(W) x 86.37(H) mm

Operating temperatures: -20 to 70°C

Storage temperatures: -30 to 80°C

Applications

Digital products, POS machine, instrument & meter, automobile electronics, communication machine, medical machine, security machine, household electrical appliances and others

Packing term

Protect product with polyfoam and multi layer paper board.

Special protect carton for exporting product,

Per customer requirement.

Delivery term

For samples, we will finish production and ship within 7~15 working days. We usually arrange DHL, UPS, FedEx express to ship samples.

For bulk orders, usually 25~35 working days and depends on your design. For bulk orders, we support shipping by air or by sea as per customers' requirements.

Custom design OEM/ODM solutions

We support both standard and customized products and can put your logo on the products. Our experienced R&D team will support technical questions. ODM/OEM products are warmly welcome.

Our Advantages

Prompt reply within 12 hours.

Products with top quality.

Very competitive prices.

Small MOQ accepted.

More than 10 years’ experience in LCD R&D and manufacturing.

Strong R&D term supports perfect customized projects.

Fabulous after-sale service.

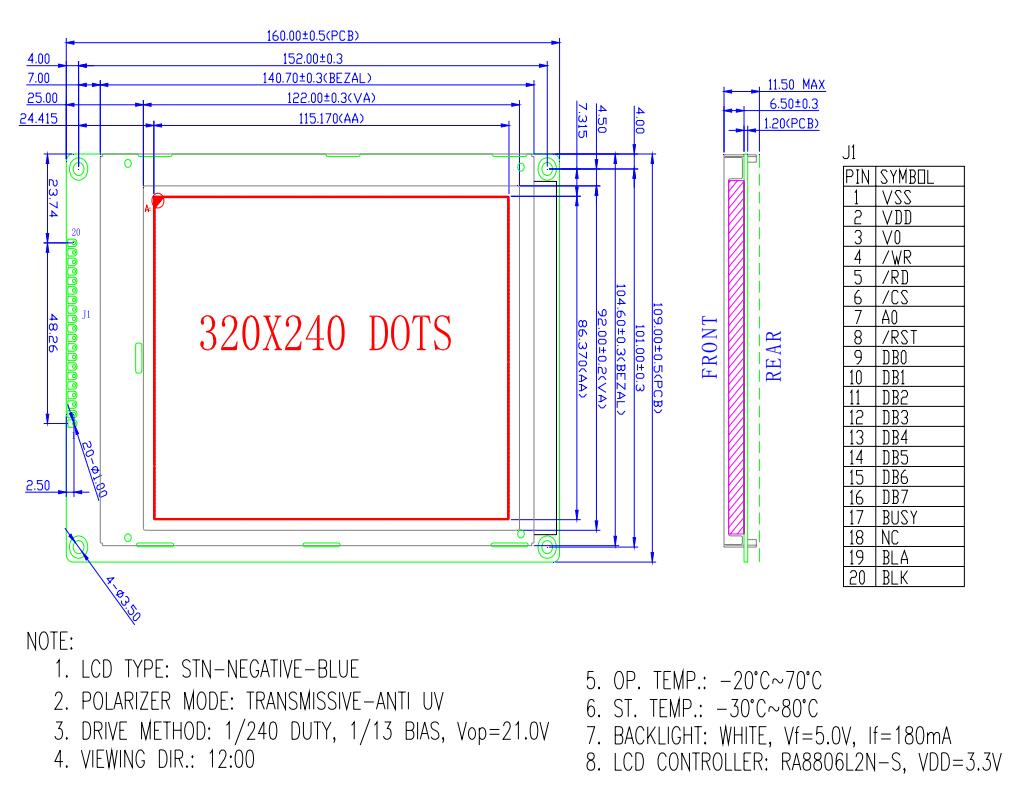

Graphic LCD Display Module 320x240 dots Mechanical Drawing
