30 Pin MIPI Interface Portrait TFT LCD Display Module 4.5 Inch 480x854

Zopin Technology Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 30 Pin MIPI Interface Portrait TFT LCD Display Module 4.5 Inch 480x854 from wholesalers

    Buy cheap 30 Pin MIPI Interface Portrait TFT LCD Display Module 4.5 Inch 480x854 from wholesalers
    • Buy cheap 30 Pin MIPI Interface Portrait TFT LCD Display Module 4.5 Inch 480x854 from wholesalers
    • Buy cheap 30 Pin MIPI Interface Portrait TFT LCD Display Module 4.5 Inch 480x854 from wholesalers
    • Buy cheap 30 Pin MIPI Interface Portrait TFT LCD Display Module 4.5 Inch 480x854 from wholesalers

    30 Pin MIPI Interface Portrait TFT LCD Display Module 4.5 Inch 480x854

    Ask Lasest Price
    Brand Name : ZP
    Model Number : ZP-64530-2800-A0
    Certification : ROHS , REACH , ISO9001 , ISO14001
    Price : Negotiated
    Payment Terms : T/T, Paypal
    Supply Ability : More than 100000 pieces per month
    Delivery Time : Within 7 working days
    • Product Details
    • Company Profile

    30 Pin MIPI Interface Portrait TFT LCD Display Module 4.5 Inch 480x854

    TFT LCD Display Module 4.5 Inch 480x854, 30 Pin MIPI Interface Portrait TFT for Mobile Phone


    TFT LCD Display Module 4.5 Inch Quick Details


    • ZP-64530-2800-A0 is a transmissive type a-Si TFT LCD Display module, which is composed of a IVO TFT-LCD panel , a driver circuit and a backlight unit .
    • The panel size is 4.5 inch and the resolution is 480 ( RGB ) x 854, it features an operating temperature range of -10 to 60°C, a storage temperature range of -20 to 70°C.
    • Built-in JD9161BA driver IC, this 4.5 inch Portrait TFT LCD Module can be easily accessed by micro-controller via MIPI interface.
    • With IPS polarizers, the panel has an extra wide full viewing angle.
    • Easy to assemble and widely used in mobile phone and other Handheld devices.
    TFT LCD Display 4.5 Inch Key Specifications and Features :

    Panel type: IPS TFT LCD

    Panel size: 4.5 inch

    LCD digital: TFT digital

    Resolution: 480 (RGB) x 854 Dots

    TFT outline dimensions: 60.00x109.00x1.75(T) mm (typical)

    Active area (H x V): 55.44 * 98.64mm

    Driver IC: JD9161BA

    Contrast ratio: 500:1 (typical)

    Interface: MIPI

    Display mode: normally white

    Surface treatment: anti-glare

    Weight: TBD

    Operating temperatures: -10 to 60°C

    Storage temperatures: -20 to 70°C

    Viewing angle: full viewing (all)

    Backlight: 10 chip white LED light

    Compliant with RoHS Directive

    30-pin interface


    Display Size4.5 InchResolution480 (RGB) x 854
    Outline Dimension60.00x109.00x1.75 mmInterfaceMIPI
    Brightness360 NitsViewing DirectionAll
    Operating Temperature-10 To 60 ℃Touch PanelWithout Touch Panel

    Active area

    55.44(H)×98.64(V) mm

    Driver IC

    JD9161BA

    Contrast ratio

    500:1

    Storage Temperature

    -20 To 70 ℃

    Viewing angle

    85/85/85/85

    Backlight

    White LED x 10

    Current40 mAFPC Connector30 pin

    TFT LCD Module 4.5 Inch Usage


    Mobile Phone, Digital products , POS machine , instrument & meter , automobile electronics , communication machine , medical machine , security machine , household electrical appliances and others .


    Frequently Asked Questions ( FAQ )


    Q: What is your Packing term?


    A: Protect product with polyfoam and multi layer paper board .

    Special protect carton for exporting product .

    Per customer requirement .


    Q: How about the Delivery term of TFT LCD Display Module?


    A:For samples , we will finish production and ship within 7 working days .

    We usually arrange DHL , UPS , FedEx express to ship samples .


    For bulk orders , usually 30 working days and depends on your design .

    We support shipping by air or by sea as per customers' requirements.


    Q: Can you support OEM and ODM?


    A:We support both standard and customized products and can put your logo on the products .

    Our experienced R&D team will support technical questions . ODM and OEM products are warmly welcome .


    Q:Why should a client choose your company?


    A:We are specialized in offering top quality Mono and TFT LCD solutions.

    More than 10 years’ experience in LCD R&D and manufacturing .

    Strong R&D term supports perfect custom design services.

    Small orders are accepted and welcome.

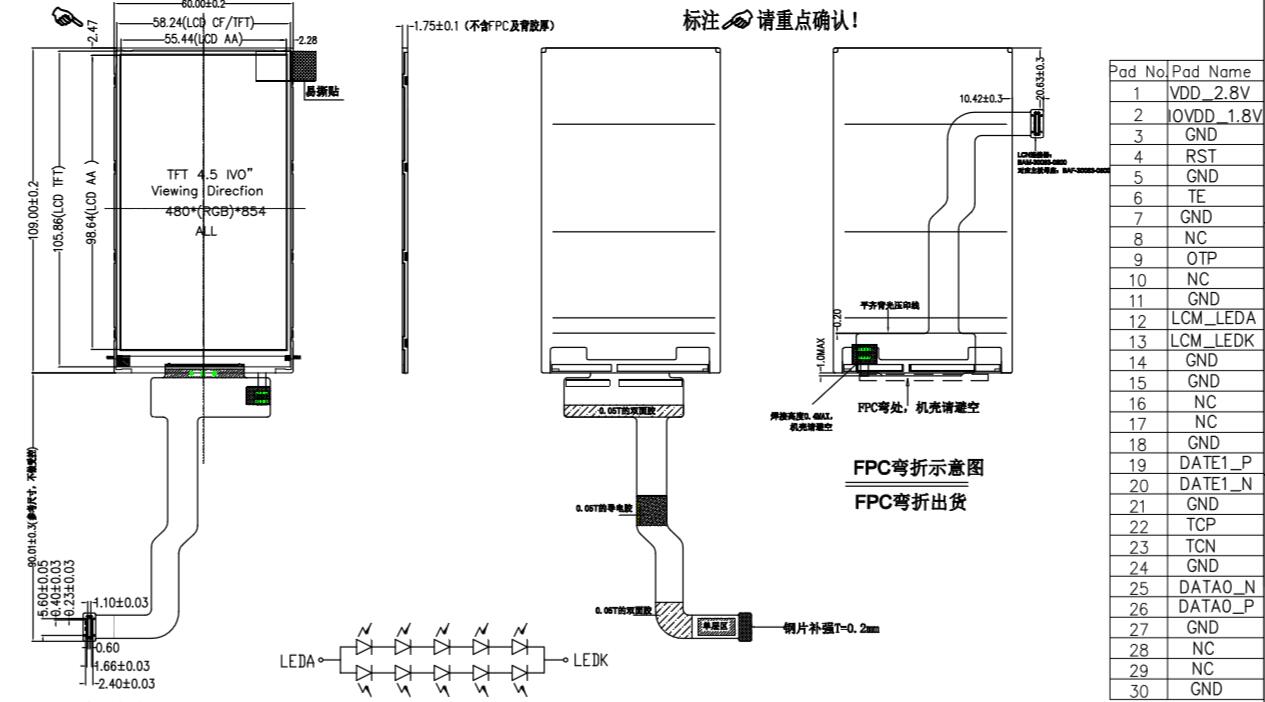

    TFT LCD Display Module 4.5 Inch 480x854 Technical Mechanical Drawing
