TFT LCD Display Module 7 Inch 1024x600 7 Inch IPS LCD Display
Module 50 Pin for Tablet
TFT LCD Display Module 7 inch Quick Details
- T7S150B-E8 is a transmissive type a-Si TFT LCD Display module,
which is composed of a TFT-LCD panel, a driver circuit and a
backlight unit.
- The panel size is 7.0 inch and the resolution is 1024 ( RGB ) x 600
dots, the panel can display up to 16 M colors.
- The LCM can be easily accessed by micro-controller via parallel interface.
- Control board and touch screen can be matched as per customer
requirements.
- This kind of 7.0 TFT LCD Display Module is easy to assemble and
widely used in the application of tablet, automotive, medical.
7 inch TFT LCD Display Module Features
Panel type: IPS TFT LCD, Landscape
Panel size: 7 inch
LCD digital: TFT digital
Resolution: 1024(RGB)x600 Dots
TFT outline dimensions: 164×97×2.6 mm (typical)
Active area (H x V): 154.2144x85.92 mm
Controller: EK79001
Contrast ratio: 800:1 (typical)
Interface: 24 bit RGB interface
Display mode: normally white
Surface treatment: anti-glare
Weight: TBD
Operating temperatures: -10 to 50°C
Storage temperatures: -20 to 60°C
Viewing angle: full viewing (all)
Backlight: 18 chip white LED light
Compliant with RoHS Directive
50-pin interface
| Display Size | 7.0 Inch | Display Resolution | 1024( RGB )x600 Dots |
|---|
| Outline Dimension | 164×97×2.6 mm | Interface | 24 Bit RGB |
|---|
| Operating Temperature | -10 To 50 ℃ | Viewing Direction | All |
|---|
| Storage Temperature | -20 To 60 ℃ | Touch Panel | Without Touch Panel |
|---|
Active area | 154.2144x85.92 mm | Polarizer Mode | Transmissive |
|---|
Contrast ratio | 800 : 1 | Driver IC | EK79001 |
|---|
Viewing angle | 85/85/85/85 | Backlight | 18 White LED Lights |
|---|
| Current | 120 mA | FPC Connector | 50 pin |
|---|
Application
Digital products, POS machine, Cash register, instrument & meter,
automobile electronics, communication machine, medical machine,
security machine, household electrical appliances and others .
Our Advantages
Prompt reply within 12 hours.
Products with top quality.
Very competitive prices.
Small MOQ accepted.
More than 10 years’ experience in LCD R&D and manufacturing.
Strong R&D term supports perfect customized projects.
Fabulous after-sale service.
Frequently Asked Questions ( FAQ )
Q: What is your Packing term?
A: Protect product with polyfoam and multi layer paper board .
Special protect carton for exporting product .
Per customer requirement .
Q: How about the Delivery term of TFT LCD Display Module?
A:For samples , we will finish production and ship within 7 working
days .
We usually arrange DHL , UPS , FedEx express to ship samples .
For bulk orders , usually 30 working days and depends on your
design .
We support shipping by air or by sea as per customers'
requirements.
Q: Can you support OEM and ODM?
A:We support both standard and customized products and can put your
logo on the products .
Our experienced R&D team will support technical questions . ODM
and OEM products are warmly welcome .

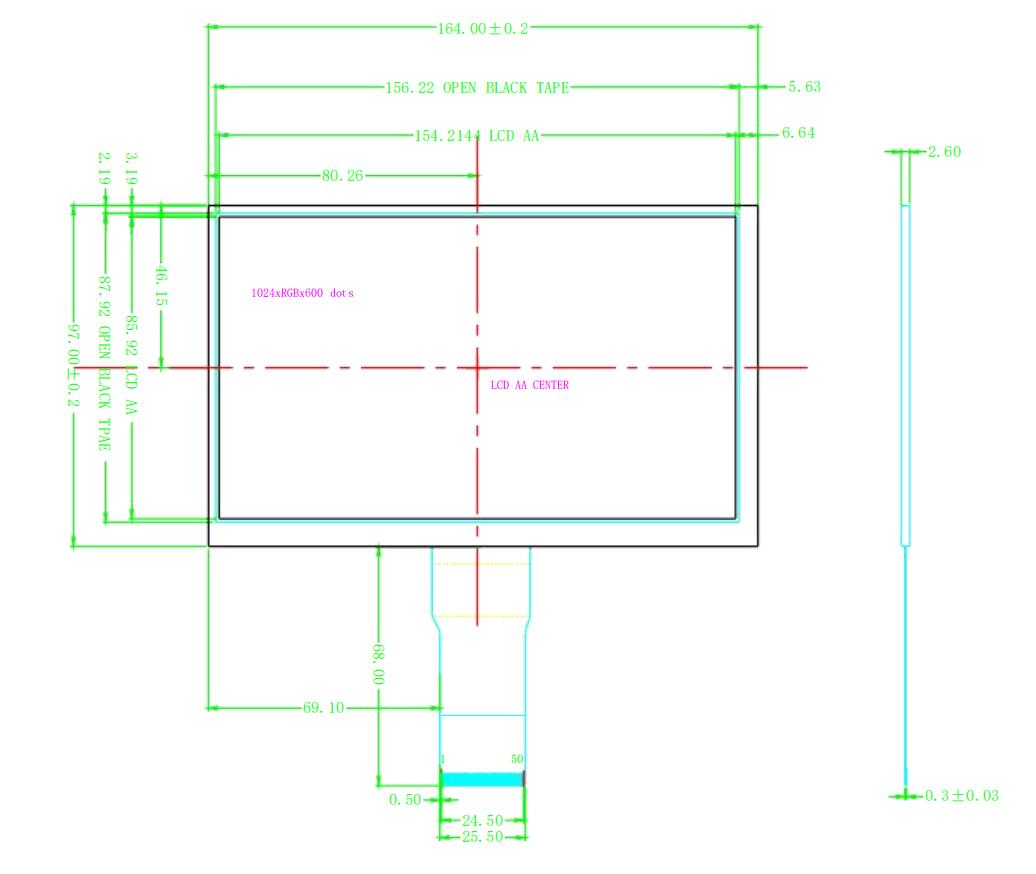

Technical Drawing
