    5.0 Inch 800x480 Dots TFT Colour Lcd Display Module With 450 Nits Backlight For Photo Frame

    Ask Lasest Price
    Model Number : T050IDW1-A20
    Certification : ROHS , REACH , ISO9001 , ISO14001
    Payment Terms : T/T, Paypal
    Delivery Time : Within 7 working days
    Brand Name : ZP
    Price : Negotiated
    Supply Ability : More than 100000 pieces per month
    • Product Details
    • Company Profile

    5.0 Inch 800x480 Dots TFT Colour Lcd Display Module With 450 Nits Backlight For Photo Frame

    TFT LCD Display Module, 5.0 Inch 800x480 Dots TFT with 450 Nits Backlight for Photo Frame
    5.0 Inch 800x480 Dots TFT LCD Display Module Qucik details
    • T050IDW1-A20 is a 5.0" diagonal a-Si TFT-LCD display module product, with an integral WLED backlight system, With LED Driver , without touch screen.
    • This 5.0 inch TFT LCD Display module features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C .
    • The general features are summarized in the following: WLED Backlight, With LED Driver, U/D,L/R Reverse.
    • Based on its features, we recommend that this model be applied to Industrial, Video Door Phone etc.
    TFT LCD Display Module 5.0 Inch 800x480 Dots General Features:
    Panel Size:5.0 InchResolution:800(RGB)×480, WVGA
    Brightness:450 Cd/m² (Typ.)Contrast Ratio:600:1 (Typ.)
    Best View On:6 O'clockSignal Interface:24bit RGB, 40 Pins FPC
    Outline Size:120.70(W)×75.80(H) ×3.10(D) MmDisplay Area:108.00(W)×64.80(H) Mm
    Operating Temp.:-20 ~ 70 °CStorage Temp.:-30 ~ 80 °C
    Panel Model T050IDW1-A20
    Panel Size 5.0 inch
    Panel Type a-Si TFT-LCD , LCM
    Resolution 800(RGB)×480, WVGA
    Color filter array RGB vertical stripe
    Display Area 108.00(W)×64.80(H) mm
    Bezel Opening 110.70(W)×67.30(H) mm
    Outline Size 120.70(W)×75.80(H) ×3.10(D) mm
    Brightness 450 cd/m² (Typ.)
    Contrast Ratio 600:1 (Typ.) (TM)
    Viewing Angle 75/75/60/70(Typ.)(CR≥10) Left / Right / Up / Down
    Display Mode TN, Normally White, Transmissive
    Best View on 6 o'clock
    Response Time 2/6 (Typ.)(Tr/Td)
    Display Colors 262K
    Lamp Type 6S2P WLED , 50K hours , With LED Driver
    Frequency 40Hz
    Touch Screen Without
    Panel Weight TBD
    Application Industrial , Video Door Phone
    Signal Interface 24bit RGB, 40 pins FPC
    Input Voltage 19.8V (Typ.)(Vf)
    Environment Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

    TFT LCD Display Module 5.0 Inch 800 X 480 Dots Applications


    Video Door Phone, Digital products, POS machine, instrument & meter, automobile electronics, communication machine, medical machine, security machine, household electrical appliances and others


    Our Advantages


    Prompt reply within 12 hours.

    Products with top quality.

    Very competitive prices.

    Small MOQ accepted.

    More than 10 years’ experience in LCD R&D and manufacturing.

    Strong R&D term supports perfect customized projects.

    Fabulous after-sale service.


    Frequently Asked Questions ( FAQ )


    Q: What is your Packing term?


    A: Protect product with polyfoam and multi layer paper board .

    Special protect carton for exporting product .

    Per customer requirement .


    Q: How about the Delivery term of TFT LCD Display Module?


    A:For samples , we will finish production and ship within 7 working days .

    We usually arrange DHL , UPS , FedEx express to ship samples .


    For bulk orders , usually 30 working days and depends on your design .

    We support shipping by air or by sea as per customers' requirements.


    Q: Can you support OEM and ODM?


    A:We support both standard and customized products and can put your logo on the products .

    Our experienced R&D team will support technical questions . ODM and OEM products are warmly welcome .

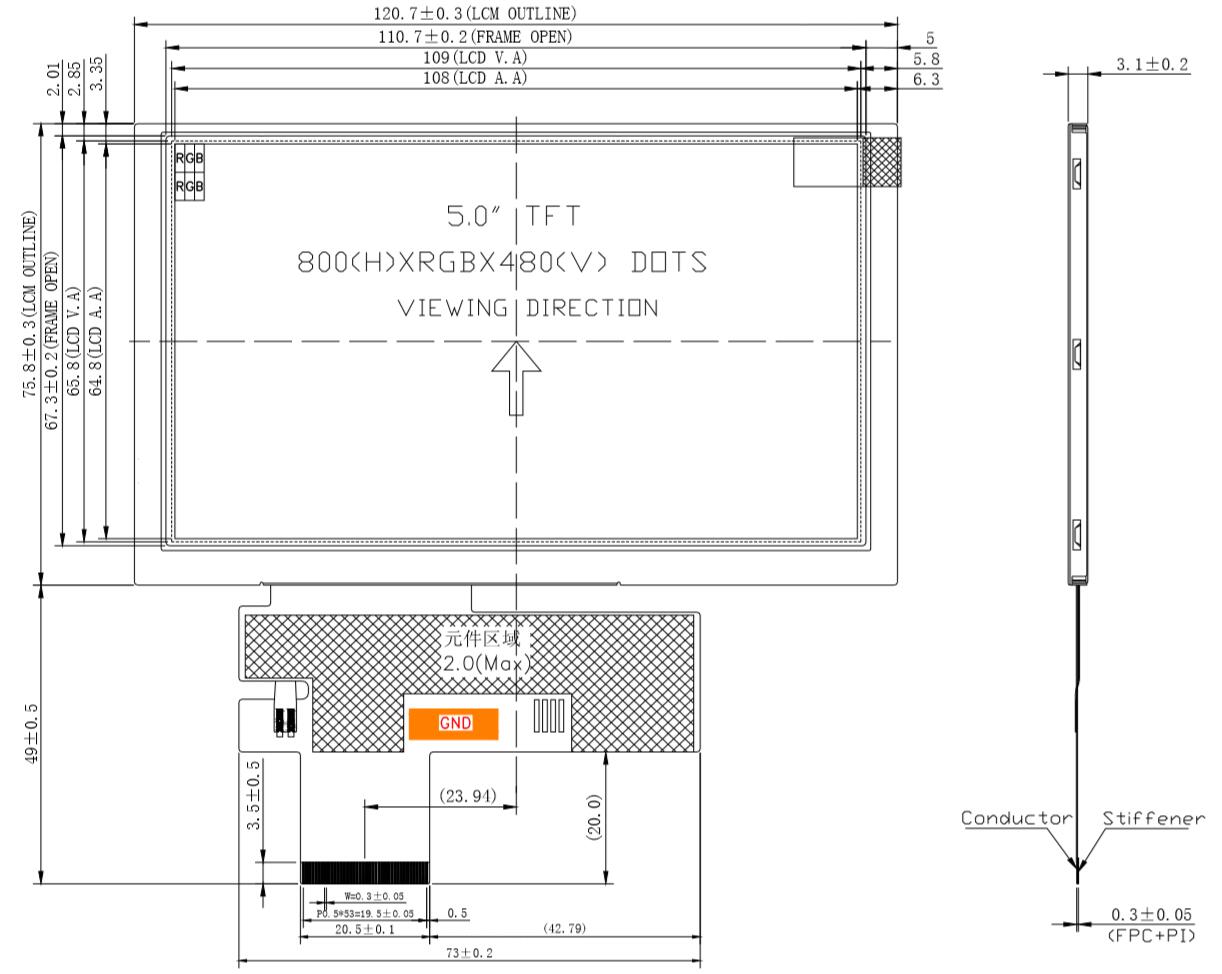

    TFT LCD Display Module 5.0 Inch 800 X 480 Dots Mechanical Drawing



    40 Pin Definition of 24 bit RGB interface
