    3.5 Inch 320x480 Pixels Resolution TFT LCD Display Module with Resistive Touch Panel

    Ask Lasest Price
    Brand Name : ZP
    Model Number : ZP35067
    Certification : ROHS , REACH , ISO9001 , ISO14001
    Price : Negotiated
    Payment Terms : T/T, Paypal
    Supply Ability : More than 100000 pieces per month
    Delivery Time : Within 7 working days
    • Product Details
    • Company Profile

    3.5 Inch 320x480 Pixels Resolution TFT LCD Display Module with Resistive Touch Panel

    TFT LCD Display Module 3.5 Inch 320x480 Pixels Resolution TFT LCD Display Module With Resistive Touch Panel

    ZP35067 is a transmissive type a-Si TFT LCD Display module , which is composed of a TFT-LCD panel , a driver circuit and a backlight unit . The panel size is 3.5 inch and the resolution is 320 ( RGB ) x 480 , the panel can display up to 262 K colors . The LCM can be easily accessed by micro-controller via MCU interface .
    TFT LCD Display Key Specifications / Special Features :

    ​Panel type: a-Si TFT LCD

    Panel size: 3.5 inches

    LCD digital: TFT digital

    Resolution: 320 (RGB) x 480

    Viewing direction: 12 o’clock

    Brightness: 180cd/m3 (minimum)

    TFT outline dimensions: 54.94*85.50*3.50(T)mm (typical)

    Active area (H x V): 48.96 * 73.44mm

    Driver IC: NT35310

    Contrast ratio: 500:1 (typical)

    Interface: RGB

    Display mode: normally white

    Surface treatment: anti-glare

    Weight: TBD

    Operating temperature: -20 to 70°C

    Storage temperature: -30 to 80°C

    Viewing angle: 70/70/70/60° (type) (CRI: ≥10Ra)

    Backlight: single LED x6

    RoHS directive-compliant

    Image reversion: up/down and left/right

    With resistive touch panel

    44-pin interface

    Display Size3.5 InchResolution320 ( RGB ) x 480
    Outline Dimension50.00 x 69.20 x 2.40 mmInterfaceMCU
    Brightness200 NitsViewing Direction12 O'clock
    Operating Temperature-20 To 70 ℃Touch PanelWithout Touch Panel

    Active area

    110.80 x 62.83 mm

    Driver IC

    ILI9341

    Contrast ratio

    500 : 1

    Storage Temperature

    -30 To 80 ℃

    Viewing angle

    45/ 45 / 50 / 20

    Backlight

    White LED x 4

    Current60 mAFPC Connector37 pin

    LCD Display Module Applications


    Digital products , POS machine , instrument & meter , automobile electronics , communication machine , medical machine , security machine , household electrical appliances and others .


    Packing term


    Protect product with polyfoam and multi layer paper board .

    Special protect carton for exporting product .

    Per customer requirement .


    TFT LCD Display Module Delivery term


    For samples , we will finish production and ship within 7 working days . We usually arrange DHL , UPS , FedEx express to ship samples .

    For bulk orders , usually 30 working days and depends on your design . For bulk orders, we support shipping by air or by sea as per customers' requirements .


    Custom design OEM/ODM solutions


    We support both standard and customized products and can put your logo on the products . Our experienced R&D team will support technical questions . ODM/OEM products are warmly welcome .


    Our Advantages


    Prompt reply within 12 hours .

    Products with top quality .

    Very competitive prices .

    Small MOQ accepted .

    More than 10 years’ experience in LCD R&D and manufacturing .

    Strong R&D term supports perfect customized projects .

    Fabulous after-sale service .

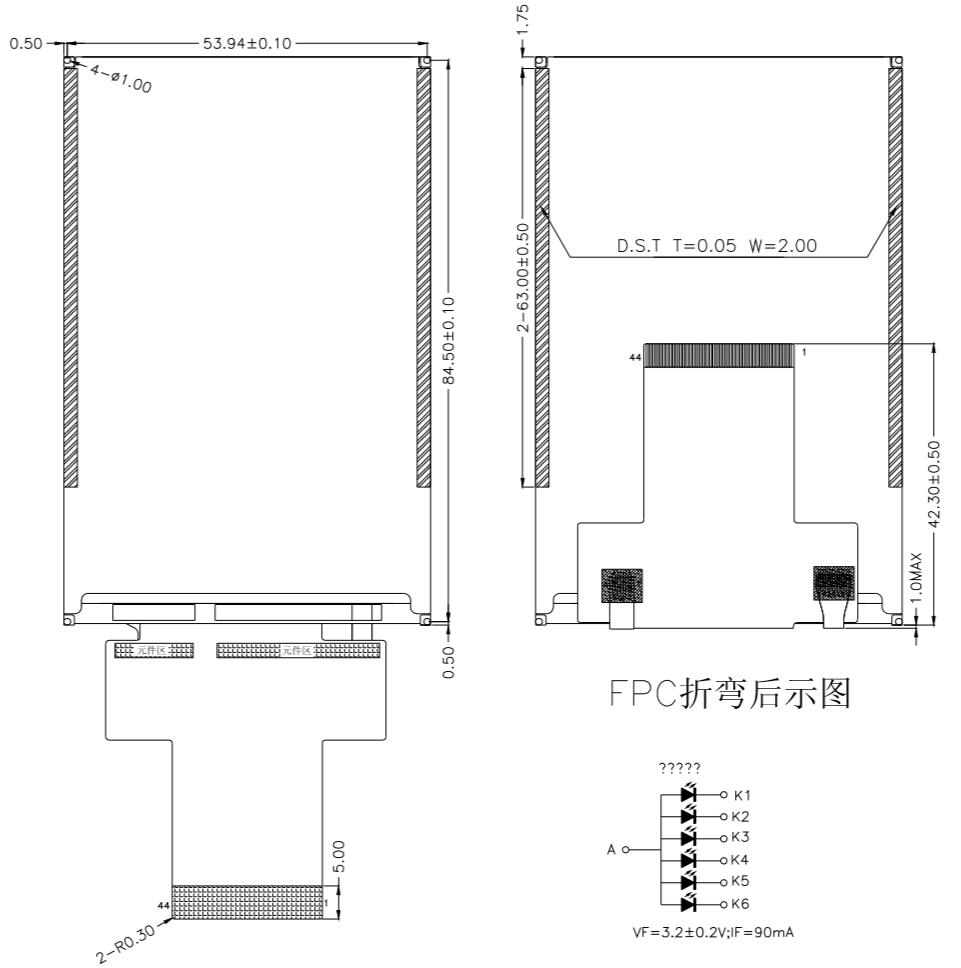

    TFT LCD Display Module 3.5 Inch Mechanical Drawing
